Motive Power Industries MP20B-3 |
 |
| Data Sheet Information Compiled by: Jean-Denis Bachand |
| New: 31 December 2008 |

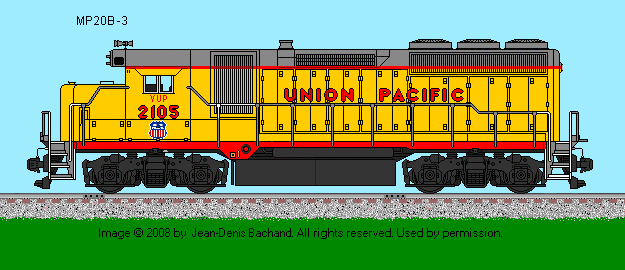

Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: Caterpillar or MTU DD |
Engine: 3516C / 12V4000 |
| Cycle: 4 / 2 |
Bore & Stroke: 170 mm (165) x 190 mm |
| RPM Max/Min: |
1800 / 450 |
| Type: EPA Tier 2 / EPA Tier 2 |
Total Horsepower: 1963 / 2000 |
| Main Generator: Kato |
Model: 350kVA |
| Gear Ratio: 62:15 |
Speed: 70 mph |
| Trucks: 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: 4 |
Model: Delco Elec. Drive |
| Weight: 277,000 lbs |
Traction Motors: GM D78B (4) |
| Tractive Effort (starting) 85,000 lbs @ 25% |
Tractive Effort (continuous): 55,000 lbs @ 9.3 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: Eilec. DR. |
Alternator: Newage |
| Air Compressor: Gerd. Denver |
Model: WLN |
| Air Brake: Westinghouse |
Model: 26L |
| Quantity Built: 5
|
Dates: 8/2006 to Date |
| - |
- |
| Exterior Dimensions
| MP20B-3 |
| Total Length |
56'-02" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-00" |
| Height to Top Hood |
14'-06" |
| Height to Top Cab |
15'-03" |
| Cab Width |
10'-04" |
| Hood Width |
10'-02" |
| Walkway |
3'-08.5" |
| Height Walkway |
10'-09.5" |
| Center Bolster |
43'-01" |
| Center Front Truck to Front Pilot |
3'-10" |
| Center Rear Truck to Rear Pilot |
3'-10" |
| Distance between Truck Centers |
43'-00" |
| Minimum Turning Radious |
42 degrees |
| -
| - |
| Fuel Oil: 2500/2700 gal.
| Lubricating Oil: 82/100 gal. |
| Engine Cooling Water: 41.5/45 gal.
| Sand Capacity: 26 cu. ft. |
Options: -
- Q-Tron QES 111 Micro-processor
|
| - |
