Motive Power Industries MP21B |
 |
| Data Sheet Information Compiled by: Jean-Denis Bachand |
| New: 12 April 2008 |

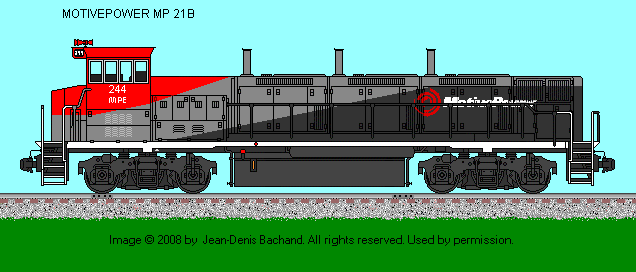

Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: Cummins |
Engine: QSK19 (3) 6L |
| Cycle: 4 |
4 EPA Tier 2 |
| RPM Max/Min: |
2100/650 |
| Number of Engines: 3 |
Total Horsepower: 2100 |
| Main Generator: KATO |
Model: 300 |
| Gear Ratio: 62:15 |
Speed: 50 mph |
| Trucks: 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: Delco (4) |
Model: Electrical Drive |
| Weight: 265,000 lbs |
Traction Motors: GM D77/78 (4) |
| Accumulators: # Series VRLA Batteries |
Rating: 700 VDC Nominak 1200 amp |
| Tractive Effort (starting) 85,000 lbs @ 25% |
Tractive Effort (continuous): 55,000 lbs @ 9.3mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: Newage |
Alternator: N/A |
| Air Brake: Westinghouse |
Model: 26L |
| Quantity Built: 1
|
Dates: 12/2007 to Date |
| - |
- |
| Exterior Dimensions
| MP21B |
| Total Length |
59'-02" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-00" |
| Height to Top Hood |
14'-06" |
| Height to Top Cab |
15'-05" |
| Cab Width |
10'-04" |
| Hood Width |
10'-03" |
| Height of Walkway |
9'-04.5" |
| Walkway Width |
3'-08.5" |
| Center Bolster |
34'-00" |
| Center Front Truck to Front Pilot |
3'-10" |
| Center Rear Truck to Rear Pilot |
3'-10" |
| Distance between Truck Centers |
43'-00" |
| Minimum Turning Radious |
30 degrees |
| -
| - |
| Fuel Oil: 2700
| Lubricating Oil: 243 |
| Engine Cooling Water: 254
| Sand Capacity: 26 cu. ft. |
Options:
- Q-Tron QES III Microprocessor
- Constant-speed Generator/Alternator
- Individual Motor Cut-out
|
| - |
- Trains, December 2007
- Motive Power Industries, Technical Data Brochures
|
